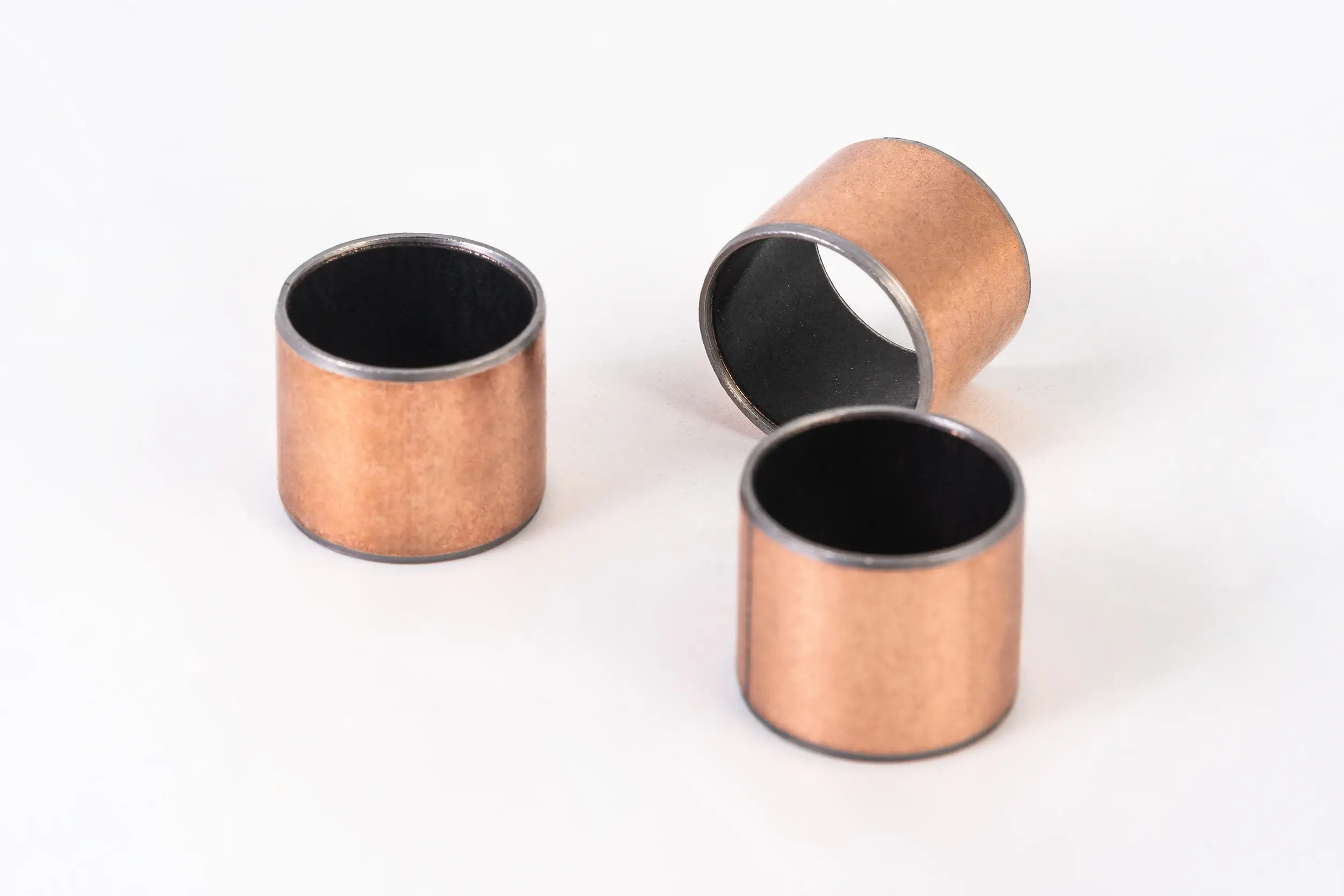

Hydraulic Gear Pump Bushings
(DP31 Equivalent)
Are you facing flow erosion or cavitation issues in your hydraulic pumps? Our JBM-40 Series is designed to solve this — with the same dimensional specification as GGB DP31, shorter lead time, and full EU lead-free compliance.
Why Hydraulic Pump Bushings Fail
Hydraulic pumps operate under extreme conditions: high pressure, high speed, and aggressive fluid dynamics. Standard bushings degrade quickly. Here are the three failure modes we solve.
Cavitation Damage
Air bubbles collapse violently against bearing surfaces at pressures above 200 bar, creating microscopic craters (pitting). Over time, this destroys the bearing surface and causes catastrophic pump failure.
High-Pressure Wear
In gear pumps, the hydraulic fluid under pressure forces the gears against the bushing wall. At 250+ bar operating pressure, conventional bushings wear rapidly, increasing internal leakage and reducing volumetric efficiency.
Lead-Free Compliance
EU RoHS and REACH regulations are tightening restrictions on lead content. Many legacy hydraulic pump bushings contain lead-bronze alloys that will soon be non-compliant — creating supply chain risk for OEMs.
Need a DP31 Replacement Urgently?
We keep standard sizes in stock. Typical lead time: 2–3 weeks for custom dimensions.
Where Our Bushings Go
A typical gear pump has 4–6 bearing points. We supply both shaft bushings and thrust plates (floating side plates).
Solutions by Pump Type
Gear Pumps
External gear pumps use floating side plates and journal bushings under extreme hydraulic pressure. Cavitation and flow erosion are the primary failure modes.
- Best for floating plates — resists flow erosion
- Max PV 60 N/mm²·m/s (hydrodynamic)
- Optimized for high-pressure lubricated environments
- Anti-cavitation sintered bronze interlayer
- Temperature range: -195 °C to +280 °C
Piston & Vane Pumps
Axial and radial piston pumps, as well as vane pumps, require bushings with ultra-low start-up friction and high-speed shaft compatibility. Dry-start conditions are common.
- Low friction at start-up (µ from 0.03)
- Suitable for high-speed shafts up to 2 m/s dry
- PTFE transfer film forms instantly
- Max static load: 250 N/mm²
- Excellent chemical resistance to hydraulic fluids
High-Performance OEM
For new pump designs requiring maximum PV capability under both dry and lubricated conditions. Ideal for variable displacement pumps in mobile hydraulics.
- Max PV 60 N/mm²·m/s (hydrodynamic)
- Max speed >5 m/s in lubricated mode
- Enhanced PTFE formulation for extended life
- Suitable for variable displacement systems
- ISO 3547 / DIN 1494 compliant
GGB DP31 vs. JBM-40 Hydraulic Bushing
Same dimensional standard. Same application. Here's how they compare on the specs that matter for hydraulic pump performance.
| Specification | GGB DP31 | JBM-40 | Verdict |
|---|---|---|---|
| Material Structure | Steel + Sintered Bronze + PTFE/Fibre | Steel + Sintered Bronze + PTFE/Polymer Fibres | Equivalent |
| Friction Coefficient (µ) | 0.02 – 0.25 | 0.03 – 0.20 | Comparable |
| Max. Static Load | 250 N/mm² | 250 N/mm² | Equal |
| Max. PV (Hydrodynamic) | 50 N/mm²·m/s | 60 N/mm²·m/s | JBM Wins |
| Erosion Resistance | Good | Excellent — dense SiBz interlayer | JBM Wins |
| Temperature Range | -200 °C to +280 °C | -195 °C to +280 °C | Comparable |
| Lead Content | Lead-free option available | 100% Lead-free (standard) | JBM Wins |
| Dimensional Standard | ISO 3547 / DIN 1494 | ISO 3547 / DIN 1494 | Identical |
| Lead Time | 6 – 12 weeks | 2 – 4 weeks | JBM Wins |
| MOQ | Varies (typically 500+) | No MOQ | JBM Wins |
| Price Level | Premium | 30 – 50% lower | JBM Wins |
Test Before You Commit
Request free samples of JBM-40 hydraulic pump bushings. Compare them side-by-side with your current DP31 supply — in your own application, at zero cost.
Where JBM Hydraulic Bushings Are Used
Mobile Hydraulics
- Excavator hydraulic pumps
- Wheel loader gear pumps
- Agricultural machinery
- Forklift lift cylinders
- Crane slew drives
- Concrete pump systems
Industrial Hydraulics
- Hydraulic power packs
- Press brake systems
- Injection molding machines
- Metal stamping presses
- CNC machine tool hydraulics
- Servo-hydraulic test rigs
Pump OEMs
- External gear pump assemblies
- Internal gear pump (crescent type)
- Axial piston pumps (swash plate)
- Vane pump cartridges
- Variable displacement pumps
- Tandem & triple pump stacks
Aftermarket & MRO
- Parker / Denison replacements
- Bosch Rexroth equivalents
- Eaton Vickers rebuilds
- Danfoss / Sauer pump repairs
- Kawasaki pump overhauls
- Generic pump refurbishment
Hydraulic Pump Bushing Range
Replace DP31 with Zero Risk
Same specs, shorter lead time, lower cost, and no MOQ. Send us your current DP31 part number and we'll confirm cross-reference compatibility within 24 hours.
