High-Performance
Idler Gear Bushings
Idler gears operate under some of the harshest conditions in any powertrain: high RPM, heavy radial loads, shock loading from gear meshing, and frequent lubrication starvation during cold starts. A failed idler bushing means catastrophic gear train damage, unplanned downtime, and costly engine teardowns. JBM is an OEM-grade manufacturer of idler gear bushings — purpose-built to survive the punishment inside diesel engines, industrial gearboxes, and high-performance transmissions.
Where Idler Gear Bushings Are Critical
From Class 8 trucks to racing transmissions — every application demands a specific material and surface treatment. Here's what we supply.
Heavy-Duty Diesel Engines
Timing gear train idler bushings, camshaft drive idler gears, accessory drive idler assemblies. We supply OEM-grade replacements compatible with major engine platforms.
Automotive & Racing Transmissions
Reverse idler gear bushings, layshaft idler bushings, transfer case idler assemblies. From OEM production lines to aftermarket race builds.
Motorcycle & Powersports
Transmission idler gear bushings for off-road motorcycles, cruisers, and ATVs. High-RPM tolerance with compact dimensions for tight gearbox housings.
Industrial & Mining Gearboxes
Reduction gearbox idler bushings, conveyor drive idlers, and timing gear assemblies for heavy-duty industrial equipment operating under extreme loads and contamination.
Bushing Position in Idler Gear Assembly
The idler gear rotates freely on a fixed shaft (idler pin). The bushing sits between the gear bore and the shaft, absorbing all radial loads from gear meshing forces. Without a proper bushing, metal-to-metal contact leads to rapid wear, seizure, and catastrophic gear train failure.
Key Engineering Requirements
- High fatigue strength — cyclic loading from gear mesh forces
- Anti-seizure properties — critical during cold starts with oil starvation
- Precise OD/ID tolerances — tight press-fit into gear bore
- Oil retention — surface grooves or pockets for splash lubrication
- Thermal stability — operating temps from -40 °C to +150 °C typical
Cross-section: Idler gear assembly showing bushing position between gear bore and fixed shaft
Four Material Families for Every Idler Gear Application
The right bushing material depends on your load, speed, lubrication regime, and environmental compliance requirements.

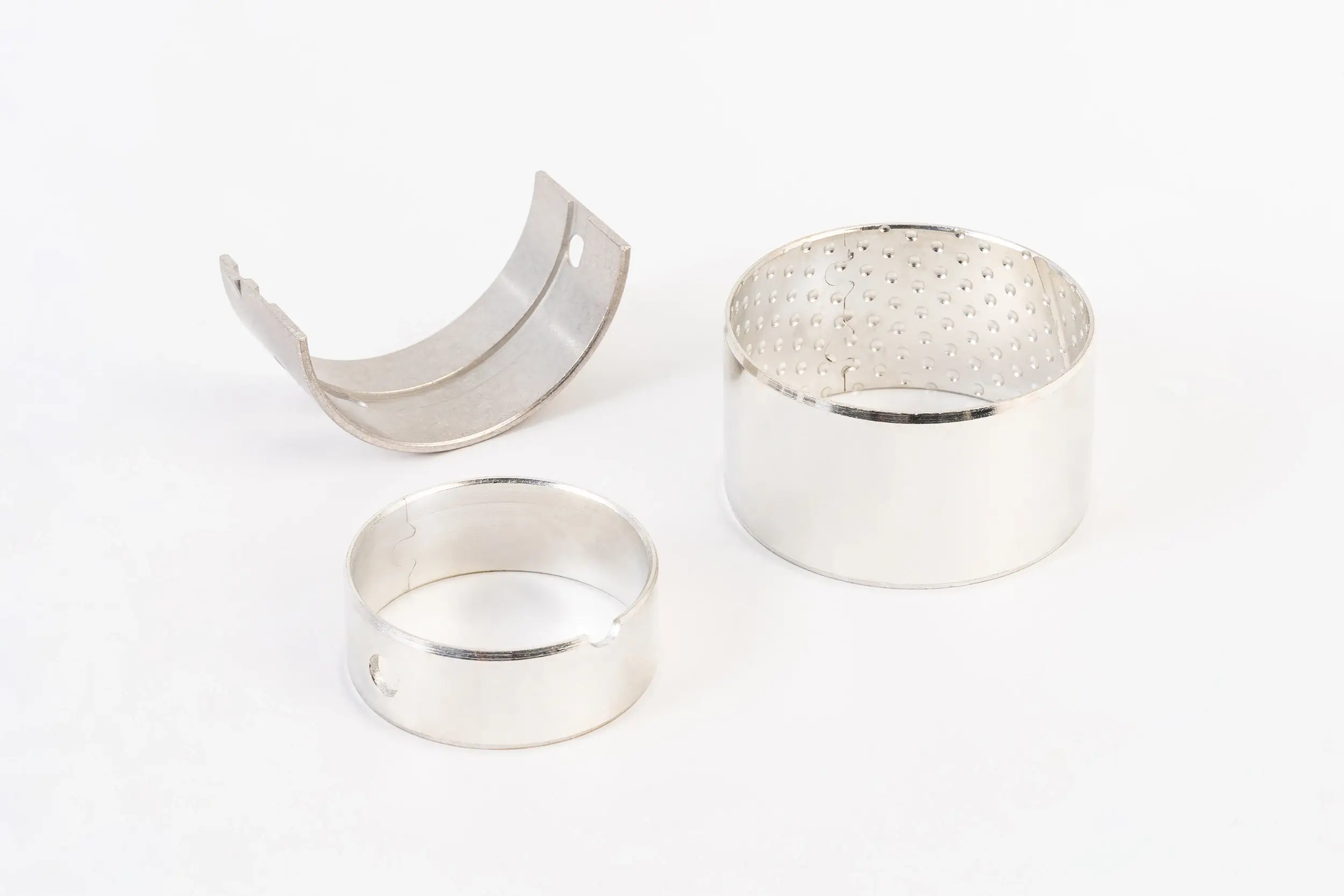

Bimetal Bushings
Steel Backed + Sintered Bronze Lining
The workhorse for engine idler gears. The sintered bronze lining on a steel backing delivers high fatigue strength and excellent anti-seizure properties under oil-splash lubrication. Diamond or ball-indented oil pockets extend re-lubrication intervals.
Steel Backed PTFE Composite
Steel + Sintered Bronze + PTFE Sliding Layer
Ultra-low friction under oil lubrication. The PTFE/fibre sliding layer provides a self-lubricating safety net during cold starts and lubrication starvation events. Excellent for high-speed transmission idlers where minimizing parasitic drag matters.
Solid Cast Bronze + Graphite
C86300 High-Tensile Brass with Embedded Graphite Plugs
For extremely heavy-duty or low-speed idler applications where shock loading and contamination are severe. The embedded graphite plugs provide self-lubrication without oil dependence. Ideal when conventional lubrication systems are unreliable.
Steel + AlSn20Cu Lining
Aluminum-Tin Alloy on Steel Backing
The OEM choice for modern automotive engine bearings and high-speed idler applications. The tin-aluminum alloy provides exceptional fatigue resistance at high RPM, excellent conformability, and superior embeddability for trapping foreign particles. Lead-free by nature.
OEM Part Number Cross-Reference
Looking for aftermarket replacements? Send us your OEM part number and we'll quote an exact-match bushing within 24 hours. We regularly produce replacements for:
Quick-Reference Comparison Table
Select the right material based on your idler gear's operating conditions.
| Feature | Bimetal (JBM-800) | PTFE Composite (JBM-50HP) | Cast Bronze (JBM-650) | AlSn20Cu |
|---|---|---|---|---|
| Max. Load (Static) | 250 N/mm² | 250 N/mm² | 100 N/mm² | 120 N/mm² |
| Fatigue Strength | High | Moderate | Moderate | Outstanding |
| Friction (Lubricated) | 0.05 – 0.20 | 0.03 – 0.20 | 0.04 – 0.20 | 0.02 – 0.15 |
| Anti-Seizure | Excellent | Good (PTFE film) | Good (Graphite) | Excellent |
| Max. Speed | 2.5 m/s | > 5 m/s | 0.5 m/s | 4 m/s |
| Max. Temperature | +250 °C | +280 °C | +300 °C | +170 °C |
| Lead-Free Option | JBM-820 ✓ | All ✓ | All ✓ | Inherently ✓ |
| Lubrication | Oil / Grease required | Self-lube + Oil | Self-lube (Graphite) | Oil required |
| Best For | Diesel engine idlers | High-speed trans. idlers | Heavy machinery idlers | Automotive engine idlers |
Why OEMs & MRO Shops Choose JBM for Idler Gear Bushings
Fast Quoting
Send us an OEM part number or drawing — receive a quote within 24 hours. No middlemen, no distributor markup.
Prototype to Production
Need 10 pieces for a rebuild or 100,000 for serial production? We scale to your volume without minimum order penalties.
Precision Tolerances
CNC machining to tight OD/ID tolerances with custom oil grooves, chamfers, and surface finishes per your specification.
Global Delivery
DDP (Delivered Duty Paid) available to EU, US, and major markets. No customs headaches — just parts on your dock.
Stop Overpaying for Single-Piece Aftermarket Bushings
Why buy expensive single-piece replacements from aftermarket catalogs? We manufacture idler gear bushings in bulk directly for OEMs and large MRO operations — faster lead times, lower cost per unit, exact OEM dimensions.
Idler Gear Bearing Products
Ready to Cut Costs on Idler Gear Bushings?
Don't let long lead times and aftermarket premiums eat into your margins. Send us your OEM part number or drawing — we'll quote within 24 hours and ship standard sizes in 2–3 weeks.
Request a Quote
