High-Performance Transmission Bushings
OEM & Aftermarket Manufacturer
Engineered for extreme radial loads and high-speed fluid environments. We manufacture precision bimetal, bronze, and composite transmission bushings for automotive, heavy-duty commercial, and agricultural rebuilders worldwide. From planetary carriers spinning at 6,000+ RPM to pump stators maintaining hydraulic pressure — every bushing is built to exact ISO 3547 tolerances and designed for drop-in installation with no line boring required.
Advanced Bearing Materials for Transmission Systems
The heart of a reliable transmission lies in its metallurgy. JBM engineers bushing materials specifically designed to withstand heat, oil starvation, and high-frequency shifting.

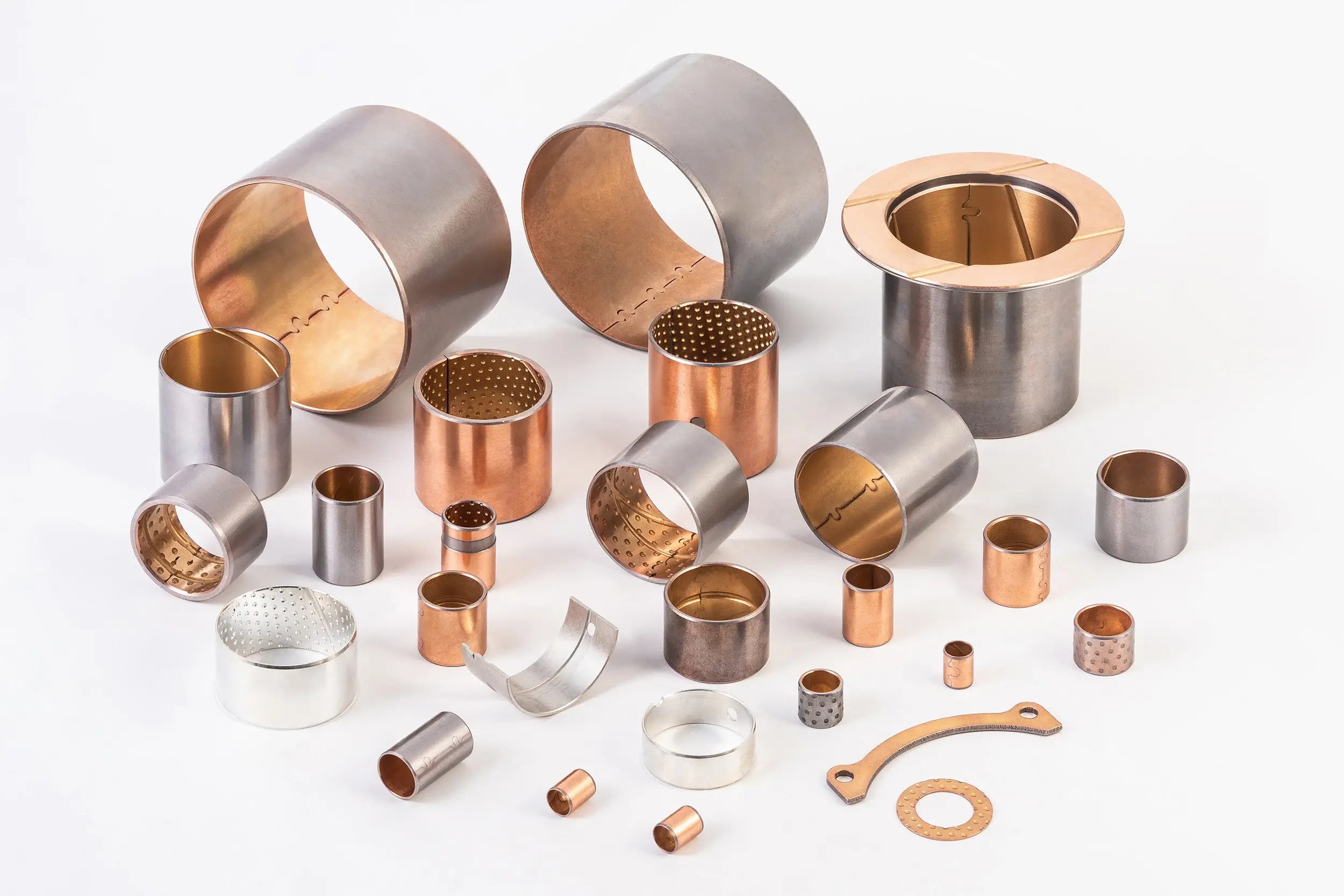

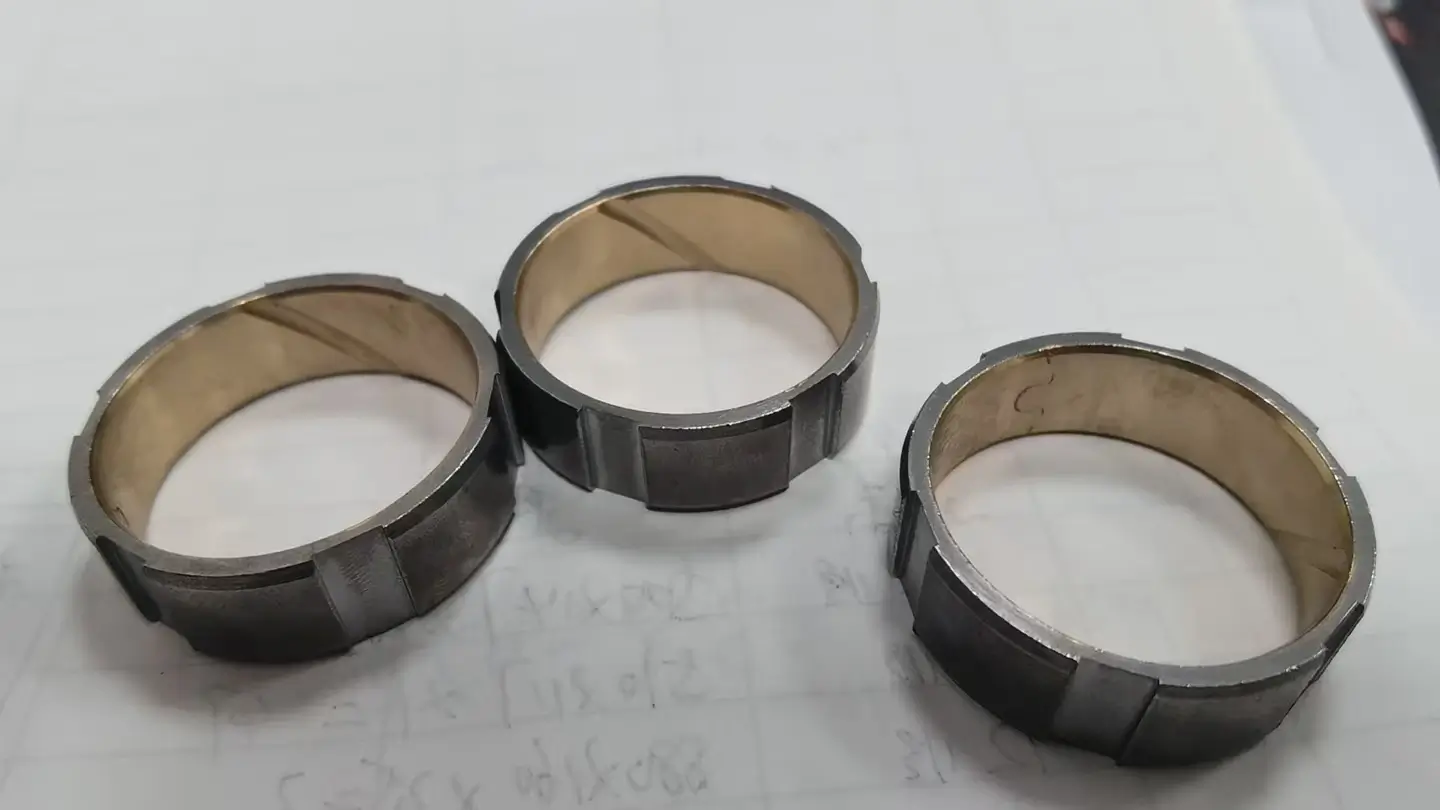

Bimetal — Steel Backed + Bronze Alloy
CuPb10Sn10 (SAE 792) / CuSn8 lead-free on low-carbon steel shell
The industry standard for heavy-duty planetary and main shaft applications. By sintering a layer of lead-bronze or lead-free copper alloy onto a rigid steel backing, we achieve an unmatched combination of high fatigue strength and excellent conformability. The steel shell maintains structural integrity under repeated thermal cycling, while the bronze lining provides a sacrificial bearing surface that protects the mating shaft.

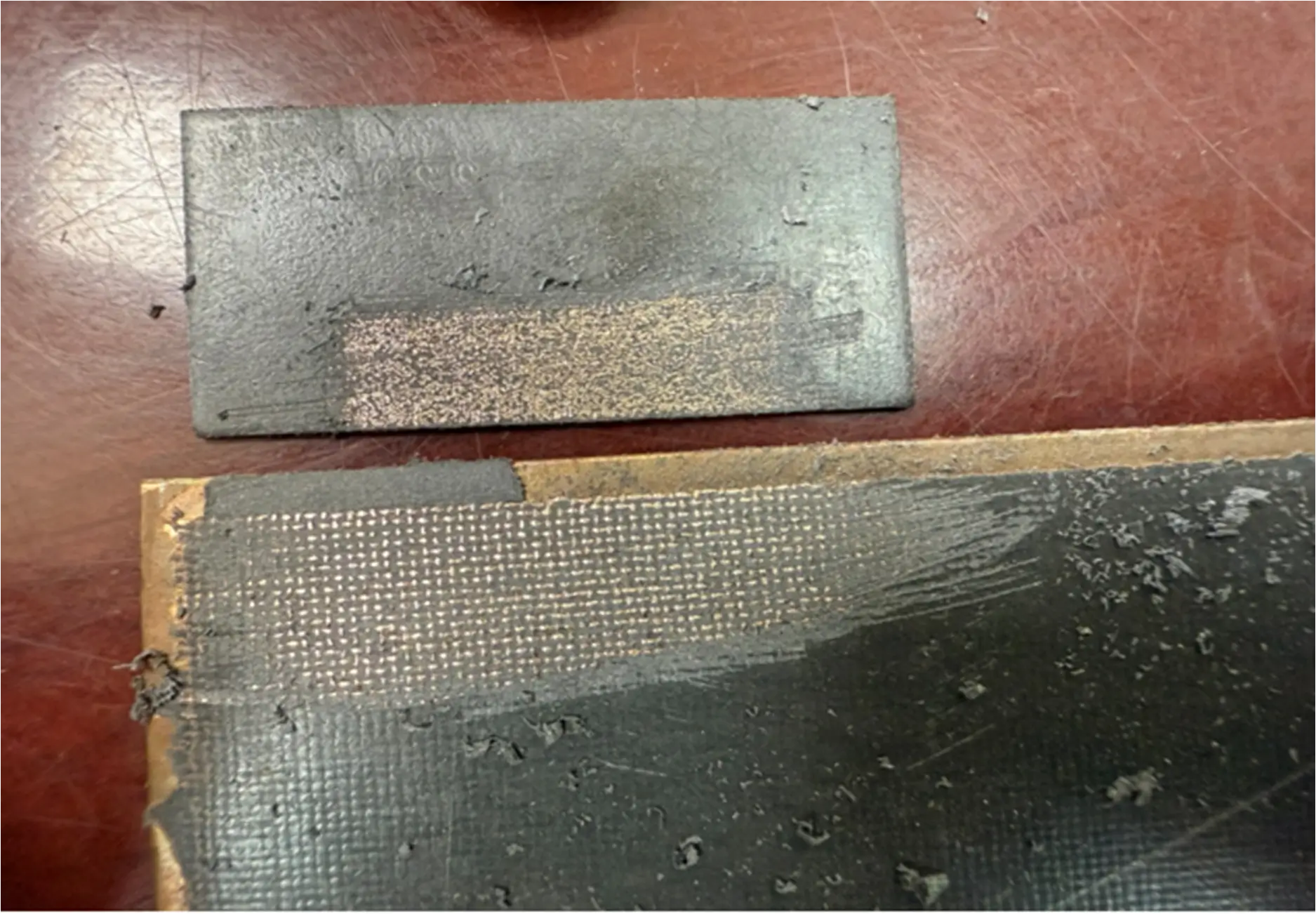

Steel-Backed PTFE/POM Composite
Steel + Sintered porous bronze interlayer + PTFE/Fibre sliding surface
Ideal for oil pump bushings and thrust washers. The porous bronze interlayer combined with a PTFE/POM sliding layer provides ultra-low friction, preventing scoring during cold starts before hydrodynamic lubrication is fully established. Self-lubricating properties reduce parasitic drag and improve overall transmission efficiency.
Solid Cast Bronze & Sintered Bronze

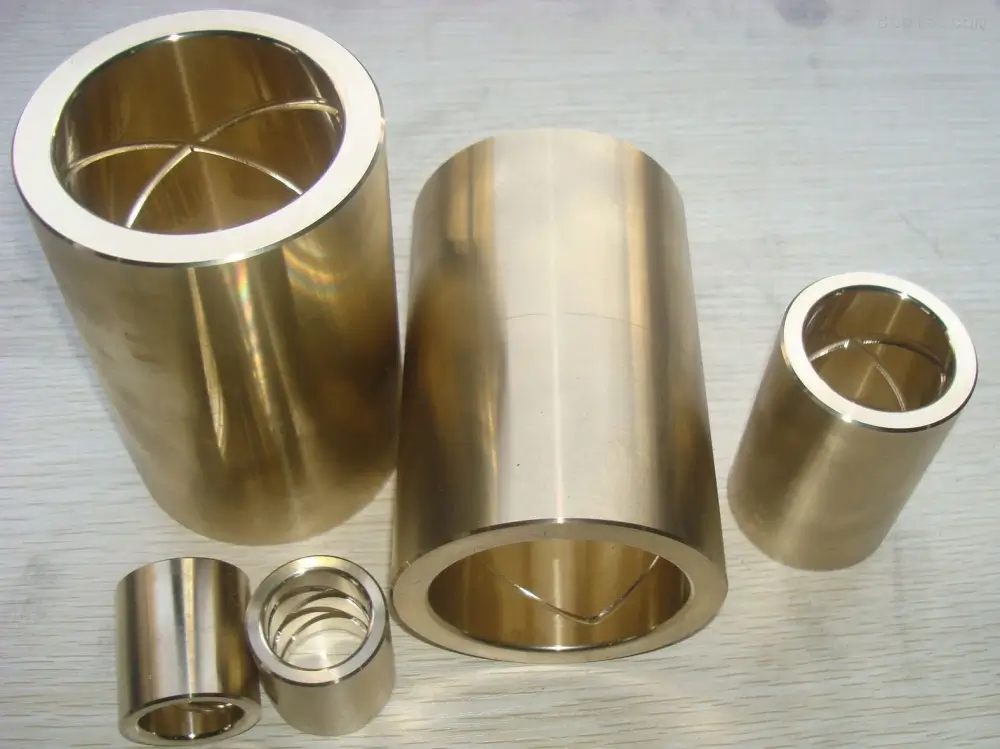

Wrapped CuSn8 with diamond oil pockets / Cast C86300 with graphite plugs
Engineered for maximum impact resistance in manual gearboxes and off-highway transfer cases. The wrapped bronze option (JBM-090) features precision-machined diamond oil pockets for optimal fluid retention. For extreme loads, cast bronze with embedded graphite plugs (JBM-650) provides self-lubrication independent of the oil supply system.
Specialized Surface Treatments
Electroplated tin, zinc-nickel, dry film lubricants
To combat wear and extend service life in the harshest environments, we offer specialized coatings applied to any base material. Electroplated tin improves initial conformability and corrosion resistance. Zinc-nickel plating exceeds 480 hours salt spray testing for marine and off-road use. Dry film lubricants (MoS₂) reduce breakaway friction during cold start.
Precision Bushings for Every Transmission Component
Whether you are remanufacturing a GM 4L60E, an Allison heavy-duty transmission, or an MTZ tractor gearbox, we supply exact-fit bushings for critical locations.
Pump & Stator Support Bushings
Manufactured with tight concentricity to prevent front seal leaks and maintain critical hydraulic pressure. Wall thickness controlled to ±0.01 mm to ensure consistent pump efficiency across production runs.
Planetary Gear Bushings
Designed to endure severe radial loads and high RPMs without flaking or premature wear. Bimetal construction provides the fatigue strength needed for multi-speed planetary sets under continuous torque cycling.
Main Shaft & Output Shaft Bushings
Providing robust support and vibration dampening for the driveline yoke. Precision bore ensures concentric alignment to reduce NVH (noise, vibration, harshness) at highway speeds.
Extension Housing / Tailshaft Bushings
Featuring micro-finished inner diameters to ensure a perfect seal interface and prevent ATF fluid loss. The finish quality directly impacts rear seal longevity — our Ra ≤ 0.8 µm surface prevents premature seal wear.
External Shift Linkage & Cable Bushings
Durable polymer and composite solutions designed to restore crisp, precise shifting in both automatic and manual linkages. Engineered to resist UV degradation, temperature cycling, and road salt exposure for long-term service life in external environments.
Engineered for "Drop-In" Remanufacturing
Transmission rebuilders and OEM assembly lines cannot afford downtime caused by poor fitment. JBM guarantees precision.

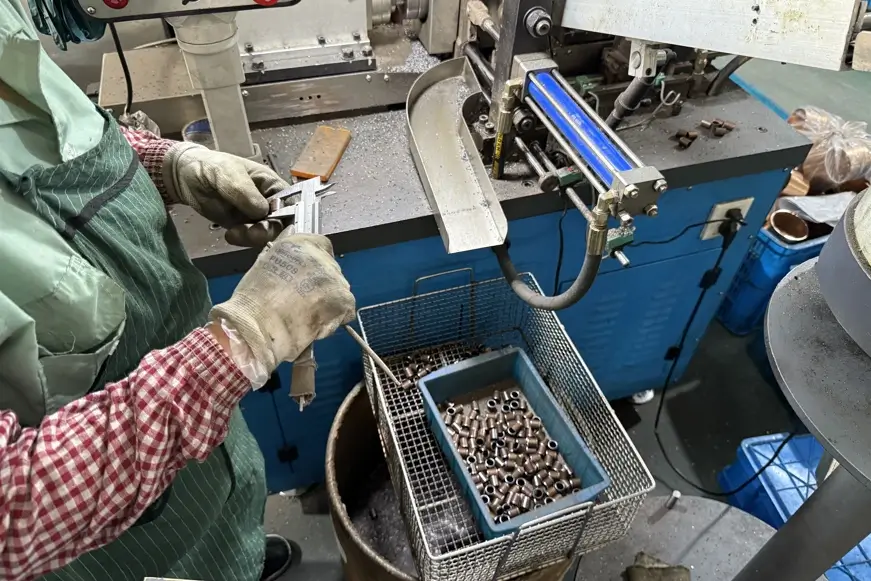

Strict Dimensional Accuracy
Our split/wrapped bushings are roll-formed to exact ISO 3547 / DIN 1494 standards. We maintain micro-level control over wall thickness and outer diameter (O.D.), ensuring a perfect press-fit every time.
No Line Boring Required
Thanks to our precision manufacturing, most replacement bushings are ready to use immediately upon installation, eliminating costly and time-consuming secondary machining for rebuilders.
Custom Oversizing for MRO
Rebuilding worn cases? We manufacture custom oversized (O.D.) and undersized (I.D.) bushings to compensate for machined transmission housings and polished shafts — no minimum order quantity.
Optimized Fluid Dynamics
Available with a variety of oil groove patterns — figure-eight, straight, diamond pockets — to ensure continuous ATF (Automatic Transmission Fluid) flow and cooling for maximum component longevity.
Trusted by Rebuilders Across Global Industries
We supply high-volume aftermarket distributors and OEM production lines across diverse sectors.
Automotive — Light Duty
Direct replacement bushings for popular passenger car and light truck transmissions.
Heavy-Duty Commercial
Rugged bimetal solutions for truck and bus transmissions facing extreme torque and continuous duty cycles.
Agricultural & Off-Highway
Robust gear and shaft bushings designed to survive heavy shock loads and contaminated environments.
Stop paying catalog prices for individual pieces
We manufacture transmission bushings in volume directly for OEM assembly lines and transmission rebuilders — shorter lead times, lower per-unit cost, exact OEM dimensions.
Frequently Asked Questions About Transmission Bushings
What causes a transmission bushing to fail?
Do you supply transmission bushing kits or individual bulk orders?
Can you manufacture replacement bushings for obsolete or discontinued transmissions?
What is the difference between bimetal and solid bronze bushings in a gearbox?
Recommended Transmission Bearing Products
Related Application Guides
Need Transmission Bushings? Let's Talk.
Whether you're rebuilding a fleet of 4L60Es or designing the next generation of commercial transmissions — send us your part numbers, drawings, or samples. Engineering response within 24 hours.
Request Quote
