High-Performance Lead-Free Bushings
(Comparable to GGB DP4®)
Looking for DP4 bushings with shorter lead times and better pricing? Our JBM-40 Series is a lead-free, metal-polymer composite bearing designed to be 100% dimensionally interchangeable with GGB DP4®. Same tri-layer structure, same performance — delivered in 2–3 weeks instead of 8–12.
RoHS Compliant
Meets EU Directive 2011/65/EU. No restricted substances including lead, mercury, cadmium, or hexavalent chromium.
Lead-Free (<0.1%)
Zero lead in bearing structure. Fully compliant with ELV (End of Life Vehicles) directive for automotive applications.
REACH Registered
Compliant with EU REACH regulation (EC 1907/2006). No substances of very high concern (SVHC) in our products.
ISO 3547 / DIN 1494
Manufactured to international dimensional standards. Drop-in replacement — no redesign, no retooling required.
Same DP4 Performance. Better Terms.
GGB DP4® is an excellent product — but long lead times (8–12 weeks), high minimum order quantities, and premium pricing make it impractical for many buyers, especially in MRO, prototyping, and small-to-medium production runs.
Our JBM-40 is engineered as a direct dimensional replacement. It uses the same tri-layer metal-polymer composite structure: a low-carbon steel backing, a sintered porous bronze interlayer, and a PTFE/polymer fibre sliding surface. The result is identical load capacity, identical friction, and identical dimensional fit — at a fraction of the cost and lead time.
Every JBM-40 bushing is 100% lead-free as standard — not as an expensive upgrade option. This makes it ideal for automotive OEMs and Tier-1 suppliers who need to meet EU ELV and RoHS requirements without paying a premium.
Drop-In Replacement For:
All dimensions per ISO 3547 / DIN 1494. No retooling needed.

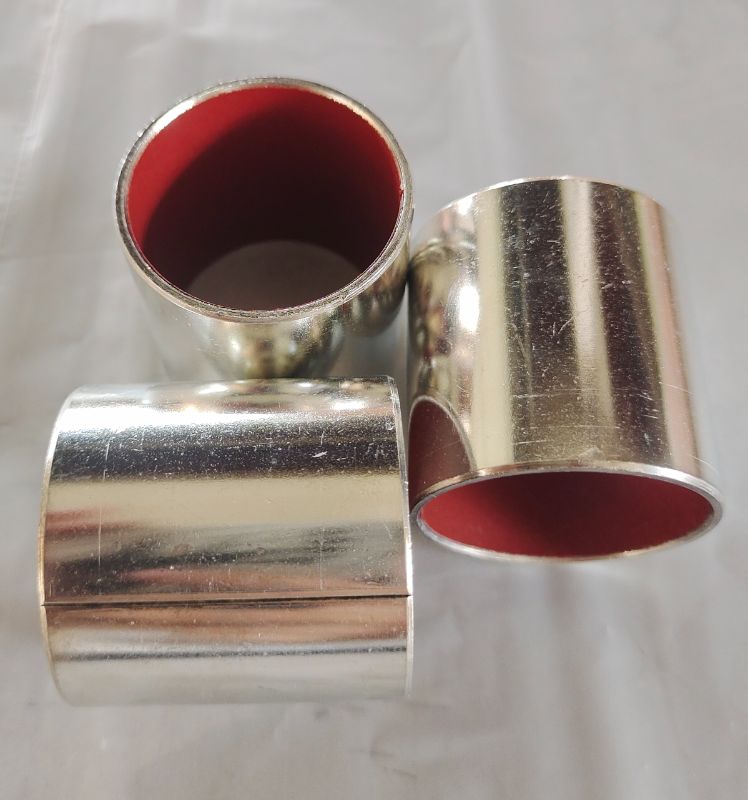

JBM-40 — DP4 Equivalent, Lead-Free
GGB DP4® vs. JBM-40 — Side by Side
Engineers need data, not marketing claims. Here's a transparent comparison of the specifications that matter.
| Feature | GGB DP4® | JBM-40 (Replacement) |
|---|---|---|
| Structure | Steel + Sintered Bronze + PTFE (Lead-Free) | Steel + Sintered Bronze + PTFE (Lead-Free) |
| Appearance | Reddish / Black | Reddish / Black (Similar appearance) |
| Max. Static Load | 250 N/mm² | 250 N/mm² |
| Max. Dynamic Load | 140 N/mm² | 140 N/mm² |
| Temperature Range | -200 °C to +280 °C | -195 °C to +280 °C |
| Dry Running | ||
| Friction, µ (Dry) | 0.04 – 0.25* | 0.04 – 0.25* |
| Max. Sliding Speed (Dry) | 2.5 m/s | 2.5 m/s |
| Max. pV (Dry) | 1.0 N/mm²·m/s | 1.0 N/mm²·m/s |
| Oil Lubricated | ||
| Friction, µ (Lubricated) | 0.02 – 0.08 | 0.02 – 0.08 |
| Max. Sliding Speed (Lubricated) | 5.0 m/s | >5.0 m/s |
| Max. pV (Lubricated) | 10.0 N/mm²·m/s | 10.0 N/mm²·m/s |
| Shaft Recommendations | ||
| Shaft Roughness Ra (Dry) | 0.3 – 0.5 µm | 0.3 – 0.5 µm |
| Shaft Hardness | >200 HB (unhardened acceptable) | >200 HB (unhardened acceptable) |
| Compliance & Standards | ||
| Thermal Conductivity | ~42 W/(m·K) | 42 W/(m·K) |
| Lead Content | Lead-free option | Lead-free as standard (<0.1%) |
| Dimensional Standard | ISO 3547 / DIN 1494 | ISO 3547 / DIN 1494 |
| Salt Spray Resistance | 720h (optional plating) | 720h (with plating option) |
| Lead Time | 8 – 12 Weeks | 2 – 3 Weeks (Rapid Delivery) |
| MOQ | Typically 500+ pcs | No MOQ — even 1 piece |
| Price | Premium tier | 50 – 80% lower |
* Depending on operating conditions. DP4® is a registered trademark of GGB Bearing Technology. JBM is not affiliated with GGB. Comparison based on publicly available datasheets.
Send Us Your Current DP4 Part Number
We'll confirm cross-reference compatibility, provide pricing, and ship samples within 48 hours.
Application Areas
Automotive
Passes 720h Salt Spray Test
- Door hinges & door checkers
- Bonnets & hood hinges
- Tailgate & trunk mechanisms
- Seat recliner mechanisms
- Steering column bushings
- Pedal pivot bearings
- Convertible top mechanisms
- Wiper linkage bearings
Hydraulics
Erosion & Cavitation Resistant
- Gear pump bushings (DP31 guide)
- Piston pump journal bearings
- Vane pump cartridge bushings
- Hydraulic cylinder rod guides
- Valve spool bearings
- Motor swash plate bearings
- Proportional valve guides
- Accumulator piston seals
Industrial & Construction
High Load, Low Maintenance
- Excavator pin bushings
- Crane slew ring bearings
- Conveyor roller guides
- Press brake pivot bearings
- Injection molding tie bars
- Packaging machine bearings
- Textile machinery guides
- Agricultural linkage pins
Free Samples — Test Before You Switch
Request free JBM-40 samples and compare them side-by-side with your current DP4 supply. Same dimensions, same fit — verify it yourself before committing to a single order.
DP4 Replacement Bearing Range
Worldwide Supply & Local Terminology
We supply high-performance DP4 and DP31 equivalent bushings worldwide. Common industry designations and local search terms include:
German (Deutsch)
Wartungsfreie Gleitlager, DP4 Buchse, Gleitlagerbuchsen, PTFE-Verbundlager.
Deutsche Seite →French (Français)
Bague DP4, Coussinet autolubrifiant, Palier lisse composite, Bague antifriction.
Italian (Italiano)
Boccola DP4, Boccole autolubrificanti, Bronzine teflonate, Cuscinetti a strisciamento.
Spanish (Español)
Casquillo DP4, Cojinete de deslizamiento, Buje autolubricado, Casquillos de fricción.
Portuguese (Português)
Bucha DP4, Mancal de deslizamento, Casquilhos auto-lubrificados.
Russian (Русский)
Втулки скольжения, Аналог GGB DP4, Металлофторопластовые втулки, Подшипники скольжения.
Polish (Polski)
Tuleje ślizgowe, Tuleje bezobsługowe, Zamiennik DP4, Łożyska ślizgowe.
Czech (Čeština)
Kluzná pouzdra, Kluzná ložiska, Náhrada DP4, Samimazná pouzdra.
Turkish (Türkçe)
Teflon burçlar, Kayar yataklar, DP4 muadili, Kendinden yağlamalı burç.
Korean (한국어)
오일리스 부싱, 무급유 베어링, 드라이 베어링, DP4 대체품.
Swedish (Svenska)
Glidlager, Bussning, Underhållsfria lager (Volvo/Scania compatible standards).
Dutch (Nederlands)
Glijlagers, Lagerbussen, Onderhoudsvrij.
Romanian (Română)
Bucșe teflonate, Lagăre de alunecare, Echivalent DP4.
Ready to Replace DP4 with Zero Hassle?
Same dimensions, same performance, 100% lead-free — delivered in 2–3 weeks at 50–80% lower cost. Send us your DP4 part number and we'll confirm compatibility within 24 hours.
