Oiles #500SP Equivalent
Graphite Plugged Bronze Bushings
Need Oiles #500SP performance without the premium price tag and long lead times? Our JDB Solid Lubricant Bearings are engineered to be a drop-in replacement for Oiles 500SP series and Sankyo Oilless components. Manufactured from high-tensile manganese bronze (C86300 / SAE 430B) with embedded solid lubricant plugs, they deliver exceptional wear resistance under heavy loads and low speeds — perfect for injection molding, automotive dies, and heavy machinery.
Why Switch to JBM JDB Series?
Identical Performance
Same base material (High-Strength Brass C86300), same graphite lubricant formulation (SL4). 100% dimensionally interchangeable with Oiles SPB/SPF/SPW series. No compromise on load capacity or wear life.
Fast Delivery
Standard sizes (SPB, SPF types) usually ship within 7–10 days. Custom dimensions available in 2–3 weeks. No more waiting 8–12 weeks for Japanese OEM supply chains.
Cost Effective
Save 40–60% compared to Japanese OEM pricing. Same C86300 alloy specification, same graphite plug pattern — direct from the factory, no distributor markup.

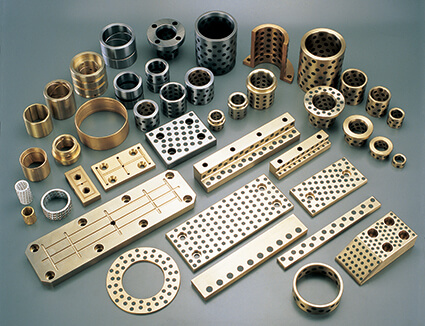

Solid Lubricant Bronze Bearings (JDB Series)
JBM JDB graphite plugged bronze bushings are cast from high-tensile manganese brass (C86300 / CuZn25Al5Mn4Fe3) — the same alloy grade used in Oiles #500SP. The graphite plugs (SL4 grade) are deeply embedded into precision-drilled holes across the bearing surface, providing 20–30% coverage for consistent self-lubrication throughout the bearing's life.
Unlike surface coatings that wear off after a few thousand cycles, embedded graphite plugs continuously transfer a thin lubricating film to the mating shaft during operation. The result: maintenance-free performance at loads up to 100 N/mm² and temperatures up to +300 °C — without a single drop of oil or grease.
Available in metric and inch sizes. Custom guiding elements for Die & Mold applications available upon request.
C86300 Base Alloy Properties
JBM-650 — Oiles 500SP Equivalent
Graphite Plug Details
- Coverage: 20–30% of bearing surface
- Pattern: Staggered geometric arrangement
- Plug size: Φ6–8mm (standard)
- Grade SL1: Graphite based — up to +400 °C
- Grade SL4: PTFE + MoS₂ — for water/marine use
C86300 / SAE 430B
Same alloy grade as Oiles 500SP
Oiles #500SP vs. JBM JDB — Side by Side
Same alloy. Same graphite. Same dimensions. Here's the engineering data that proves it.
| Feature | Oiles #500SP (Original) | JBM-650 JDB (Replacement) |
|---|---|---|
| Base Material | High-Strength Brass (CAC304 / C86300) | High-Strength Brass (C86300 / CuZn25Al5) |
| Lubricant | Embedded Graphite Plugs (SL4) | Embedded Graphite Plugs (SL4) |
| Graphite Coverage | 20–30% | 20–30% |
| Hardness | HB 210+ | HB 210+ |
| Tensile Strength | ≥ 750 N/mm² | ≥ 750 N/mm² |
| Max. Load (Static) | 150 N/mm² | 150 N/mm² |
| Max. Speed (Dry) | 0.5 m/s | 0.5 m/s |
| Max. PV (Dry) | 1.65 N/mm²·m/s | 1.65 N/mm²·m/s |
| Friction Coefficient | 0.04 – 0.20 | 0.03 – 0.19 |
| Max. Temperature | +300 °C | +300 °C (+400 °C with SL1 graphite) |
| Interchangeability | Standard | 100% Dimensional Match |
| Lead Time | 8 – 12 Weeks (via Japanese supply chain) | 7 – 10 Days (standard sizes) |
| MOQ | Varies (distributor-dependent) | No MOQ |
| Price Level | $$ (Japanese OEM premium) | 40 – 60% lower |
Oiles® and #500SP are registered trademarks of Oiles Corporation. JBM is not affiliated with Oiles. Comparison based on publicly available datasheets.
Have an Oiles or Sankyo Part Number?
Send us the code (e.g. SPB-2030, SPF-3040) and we'll confirm compatibility + pricing within 24 hours.
Compatible Part Numbers
We manufacture replacements for the following standard series. Simply send us the part number for an instant cross-reference.
Oiles® #500SP Series
Sankyo Oilless® Series
Also Compatible With:
MPBZ • Graphalloy • JDB series (China standard) • JFB flanged series • Any 500# grade graphite-bronze bushing
Where Oiles 500SP Equivalents Are Used
Plastic Injection Molding
- Mold guide bushes
- Ejector plate bushings
- Tie-bar bushings
- Toggle mechanism bearings
- Clamping unit guides
- Nozzle alignment bushings
Automotive Stamping Dies
- Press die guide posts
- Guide bushings (VDI 3357)
- Wear plates & strip guides
- Cam unit bearings
- Transfer die slide bearings
- Stripper plate bushings
Steel Mills & Metallurgy
- Rolling mill chocks
- Cooling bed bearings
- Continuous casting guides
- Furnace door bearings (+400 °C)
- Ladle turret bushings
- Roller table guides
Construction & Heavy Equipment
- Excavator bucket pins
- Boom arm pivot bearings
- Hydraulic cylinder eyes
- Grab & grapple bearings
- Dam gate & sluice bearings
- Marine / ship bearings
Test Our Quality — Free Samples Available
Order free JBM-650 samples and compare them directly against your Oiles 500SP supply. Same golden brass, same embedded graphite, same dimensions — prove it in your own application.
Graphite Plugged Bronze Bearing Range
Ready to Cut Costs on 500SP Bushings?
Don't let long lead times stop your production. Send us your Oiles or Sankyo part numbers today for a quote within 24 hours. Standard sizes ship in 7–10 days.
