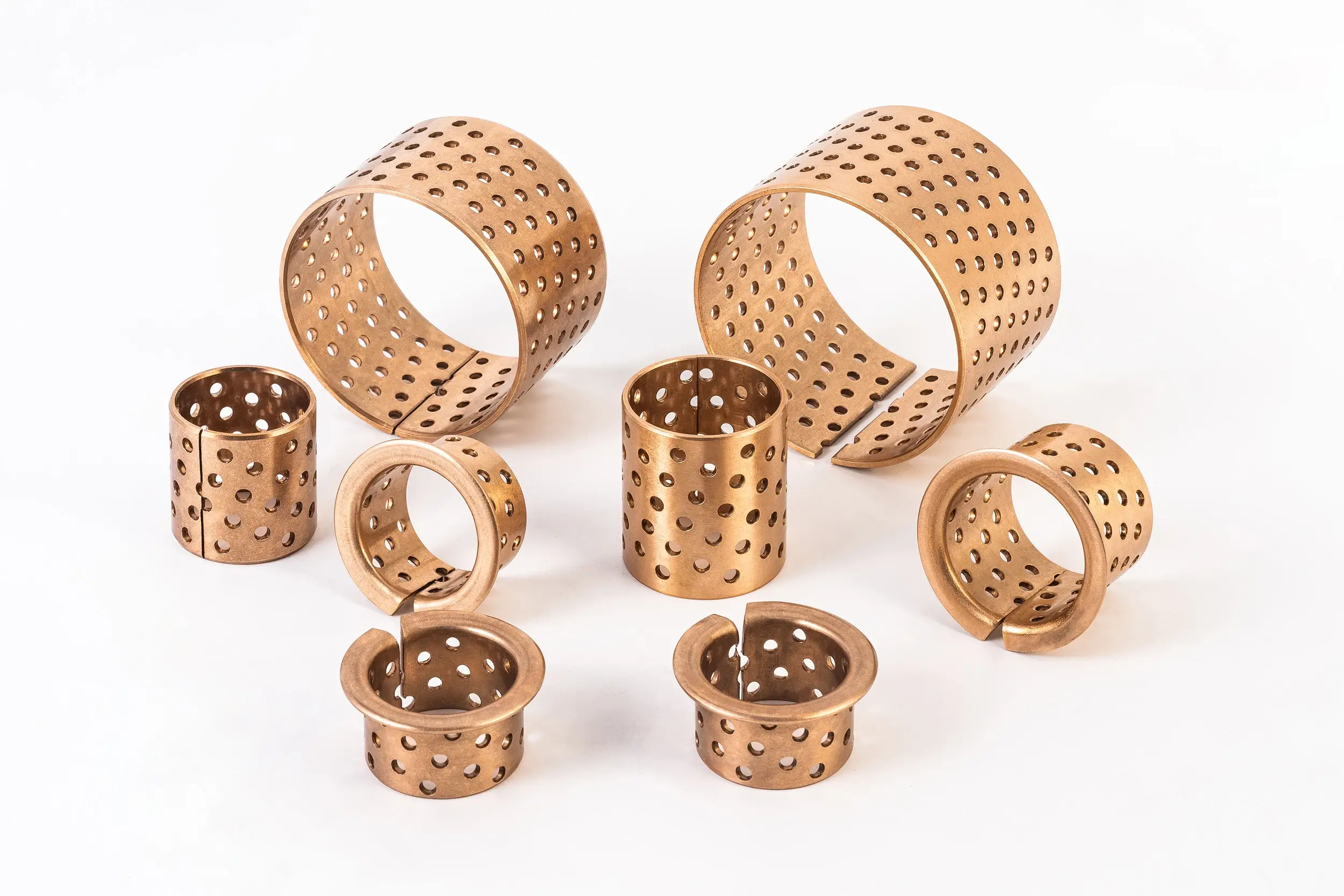

Wrapped Bronze Bushings (WB800)
Our Wrapped Bronze Bushings (also known as Rolled Bronze Bushings or tension bushings) are made from high-quality CuSn8 bronze strips with diamond oil pockets. Manufactured to ISO 3547 / DIN 1494 for maximum load capacity in demanding industrial environments.
What Are Wrapped Bronze Bushings?
Wrapped bronze bushings — frequently called rolled bronze bushings or tension bushings in the industry — are thin-walled plain bearings manufactured from cold-rolled phosphor bronze strip (CuSn8). Unlike cast or machined solid bronze, these bushings are produced by rolling flat strip material into cylindrical or flanged forms, resulting in a characteristic longitudinal split joint.
The homogeneous bronze construction means the entire bushing is the same high-quality CuSn8 material throughout — no steel backing, no coatings. This provides excellent corrosion resistance, high thermal conductivity, and consistent wear properties across the full wall thickness.
The rolling process ensures that the bushings have diamond-shaped oil pockets formed directly into the bearing surface. These indentations act as grease reservoirs, ensuring rapid lubricant film formation at startup and extended lubrication intervals during operation.
CuSn8 Phosphor Bronze
High-strength tin bronze alloy with exceptional elasticity, wear resistance, and corrosion resistance.
WB800 with diamond oil pockets
ISO 3547 / DIN 1494
Manufactured to international standards
Industry Equivalents
FB090 • WB-800 • BMZ • AB090 • SKF PRM
Direct replacement for all major OEM specifications
Full Specifications
Compare the WB700 and WB800 series in both cylindrical and flanged configurations. The WB800 series offers enhanced material properties thanks to the hardening process applied during rolling.
| Property | S-WB700 / S-WB702 | WF-WB700 / WF-WB702 | S-WB800 / S-WB802 | WF-WB800 / WF-WB802 |
|---|---|---|---|---|
| Type | Cylindrical | Flanged | Cylindrical, Hardened | Flanged, Hardened |
| Material | CuSn6.5P | CuSn6.5P | CuSn8P | CuSn8P |
| Hardness | HB 90–120 | HB 90–120 | HB 125–150 | HB 125–150 |
| Max. Load Pressure | 75 N/mm² | 75 N/mm² | 100 N/mm² | 100 N/mm² |
| Max. Linear Speed | 2 m/s | 2 m/s | 2.5 m/s | 2.5 m/s |
| Max. PV Value | 2.5 N/mm²·m/s | 2.5 N/mm²·m/s | 2.8 N/mm²·m/s | 2.8 N/mm²·m/s |
| Tensile Strength (Rm) | 450 N/mm² | 450 N/mm² | 460 N/mm² | 460 N/mm² |
| Yield Strength (Rp0.2) | 250 N/mm² | 250 N/mm² | 260 N/mm² | 260 N/mm² |
| Friction (µ) | 0.08–0.25 | 0.08–0.25 | ||
| Temperature Range | -100 / +200 °C | -100 / +200 °C | ||
Product Standard: ISO 3547 (replaces DIN 1494)
Can't find the right dimension in the table?
Send us your specifications — we'll provide a quote with the exact fit for your application.
Load vs. Speed (WB800)
The WB800 series material properties, combined with the rolling and calibration process, make these rolled bronze bearings especially suited for constructions with high loads and relatively low speeds.
100% Denser Microstructure with Hot Rolling
The WB800 series offers more extensive material processing and is at least 100% denser than the nearest competitor thanks to the hot rolling process. Third-party testing shows 43% longer service life compared to competing products.
Oil Pocket & Surface Options
The bearing surface of these wrapped bronze bushings can be customized with different lubrication features to match your specific operating conditions. Each pattern is optimized for particular use cases.
Diamond Oil Pockets
Diamond-shaped indentations rolled into the surface act as grease reservoirs. The standard pattern for most applications.
Through Holes
Full-through perforations provide maximum oil capacity and allow debris to escape. Excellent for dirty environments with oil bath lubrication.
Graphite Filled Pockets
Diamond pockets filled with solid graphite lubricant. Provides emergency dry-running capability and reduced startup friction.
Plain / Smooth Surface
No surface features. Used in strict hydrodynamic lubrication applications where a continuous oil film is maintained.
Why Choose JBM Wrapped Bronze Bushings?
High Load Capacity
CuSn8 phosphor bronze handles static loads up to 280 N/mm². Ideal for slow-speed, high-load oscillating movements.
Thin Wall Design
Compact wall thickness (1.0–2.5 mm) minimizes overall assembly dimensions. Space-saving solution for tight installations.
Corrosion Resistant
Homogeneous CuSn8 bronze resists corrosion from water, chemicals, and weathering. Suitable for outdoor and marine environments.
Thermal Conductivity
Superior heat dissipation prevents hot spots and thermal damage. Wide temperature range: -100 °C to +200 °C.
Oil Pocket Design
Diamond indentations store grease for extended lubrication intervals. Ensures rapid film formation at startup.
Machinable ID
Inner diameter can be machined after installation for precision fitting. Allows fine-tuning of clearance in-situ.
DIN 1494 / ISO 3547
Manufactured to international standards. Direct drop-in replacement for FB090, WB-800, and equivalent series.
Cost Effective
Roll-forming process is more economical than machining solid bronze. Excellent value for high-volume production.
We typically respond within 12 hours
Tell us about your application, desired dimensions and quantity — our engineering team will get back to you with a tailored quote.
Where Rolled Bronze Bushings Excel
Wrapped bronze bushings (rolled bearings) are the preferred choice for high-load, slow-speed applications where corrosion resistance and grease lubrication are required.
Hydraulic Equipment
- Hydraulic cylinder eyes
- Cylinder clevis mounts
- Actuator pivot points
- Pump linkages
- Valve actuators
- Mobile hydraulic systems
Agricultural Machinery
- Tractor linkage bushings
- Harvester pivot bearings
- Implement attachment points
- PTO shaft bushings
- Loader arm pivots
- Disc harrow bearings
Lifting Equipment
- Crane boom bushings
- Tail lift pivots
- Scissor lift bearings
- Forklift mast bushings
- Hoist drum bearings
- Aerial platform pivots
Construction Equipment
- Excavator bucket pins
- Dozer blade pivots
- Backhoe linkages
- Concrete pump arms
- Road roller bearings
- Compactor pivot points
Order Free Samples
Want to evaluate WB800 quality before ordering? We'll send sample bushings at no cost so you can test fit, finish, and material directly in your design.
No obligations — completely free
WB800 & WF-WB800 Up Close

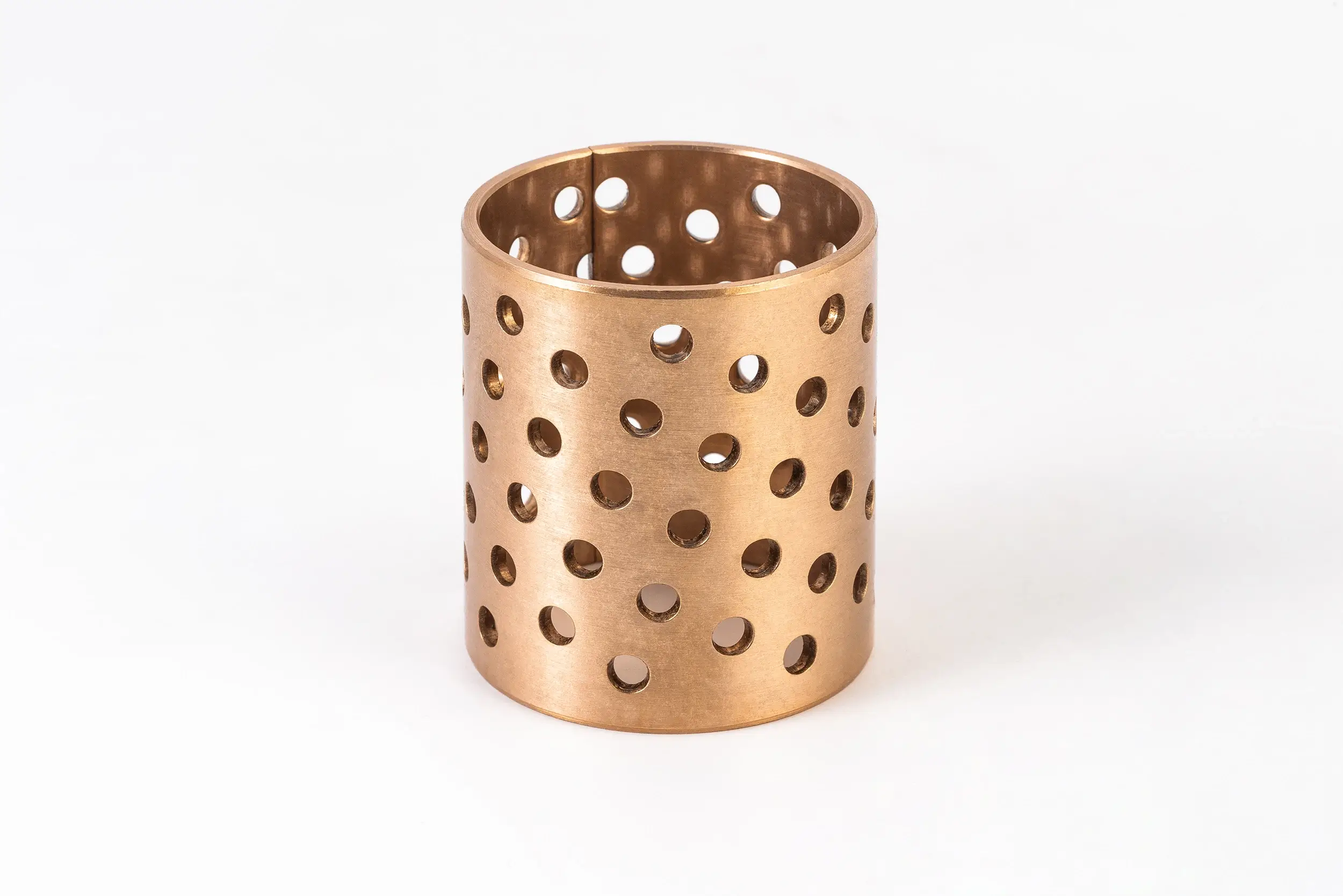

WB800 — Cylindrical Bushing

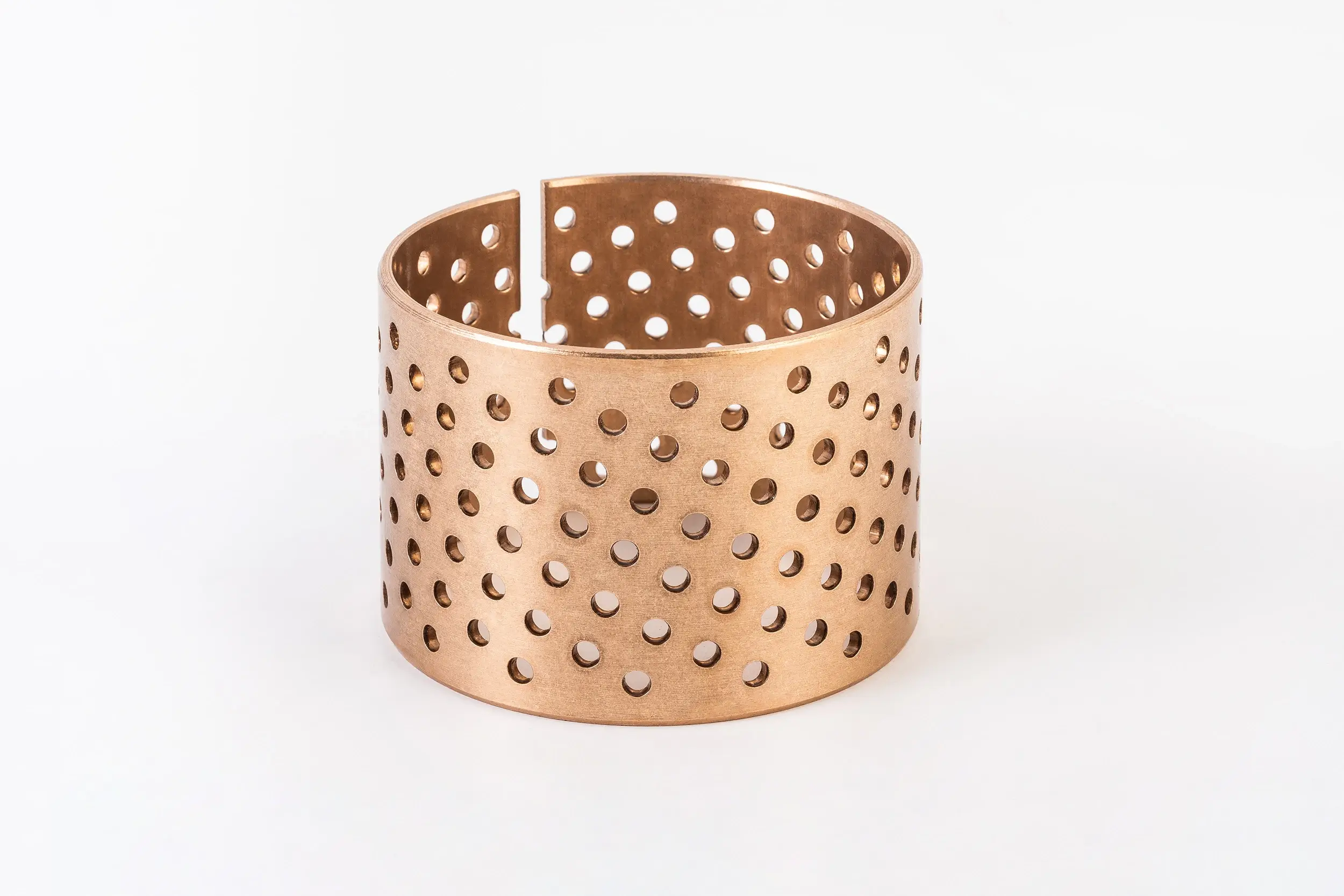

WF-WB800 — Flanged Bushing

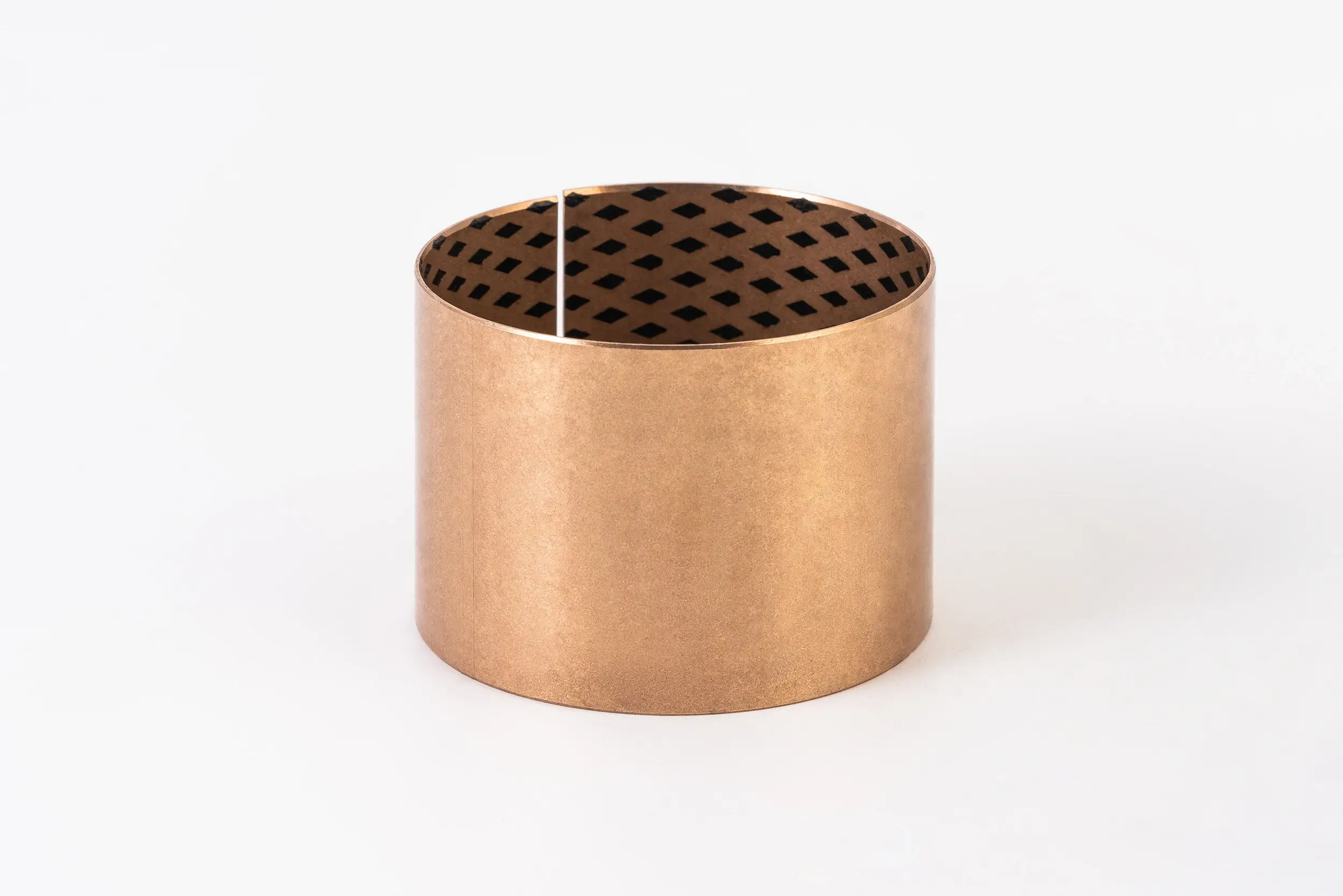

Diamond Oil Pockets — Close-up
Bushing Types & Dimensions
Cylindrical Bushings
Standard sleeve design for radial loads. Most common configuration.
ID: 6 mm – 150 mm
Flanged Bushings
Integral flange for axial location and thrust loads.
ID: 8 mm – 100 mm
Thrust Washers
Flat ring bearings for pure axial loads.
ID: 10 mm – 80 mm
A Trusted Partner for Your Bearing Needs
Direct from Factory
No middlemen — you buy directly from our manufacturing facility. That means competitive pricing, full quality control, and fast communication.
Custom Solutions
We manufacture bushings to your exact specifications — custom dimensions, tailored lubrication patterns, and unique surface treatments.
Reliable Delivery
Efficient production and logistics ensure on-time delivery. We have extensive experience exporting to Europe, North America, and worldwide.
Engineering Support
Our engineering team helps you select the right material, sizing, and tolerances for your specific application requirements.
Need Wrapped Bronze Bushings?
JBM manufactures WB800 rolled bronze bushings in CuSn8 phosphor bronze to DIN 1494 and ISO 3547 standards. From hydraulic cylinders to agricultural equipment, we deliver FB090-equivalent quality at competitive prices. Contact us for a quote — we typically respond within 12 hours.
